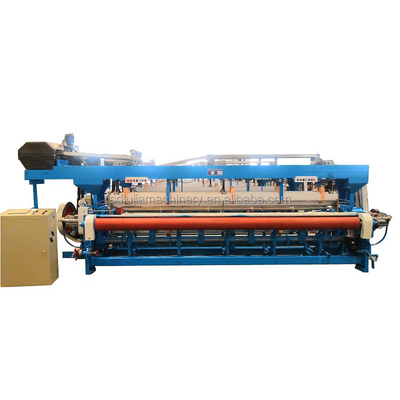

GA736 type flexible rapier loom is together with the advantages of various looms from home and abroad at present. it adopts flexible rapier ribbon in weft insertion,controlled by micro-computer,steady performance,lower voice,convenient operation. it can easily weave fabric of plain,twill and heavy fabric. the machine also adopts independent model let-off worm wheel box,short swinging arm movement,four connecting rod beat up,double colth-pressing roller take up,six connecting rod weft insertion,bearing model warp beam foot,large model beam flange.
The main performances and specification
1.Working Width: 180cm 200cm 230cm 250cm 280cm,340cm
2.Working Speed:160-280 r/min
3.Yarn to be woven: cotton,wool,hemp,chemical fibre and its blended
4.Weaving No: chemical fiber 75-1800den., others: 13-195tex
5. Number of head frames: 16 frames
6.Color number of weft yarn: six color (dobby control)
7.Weaving density: 30-800/10cm
8. Selvedge type: doup edge
9. Warp diameter: Φ500mm,Φ550mm,Φ600mm
10. The diameter of fullcloth:Φ400mm
11. Warp position motion:six-row electrical control.
12. Weft position motion: piezoelectric ceramic736.
13. filling insertion:six levers filling insertion,center connection.
14. shedding device:upper mechanicl dobby with spring forced head return.
15. drive system:clutch driven by motor with triangle type belt.
16.take-up:continuous take-up motion.
17. temple:single row copper needle ring roller
18. motor power:2kw
19. electrical control:controlled by micro-computer
