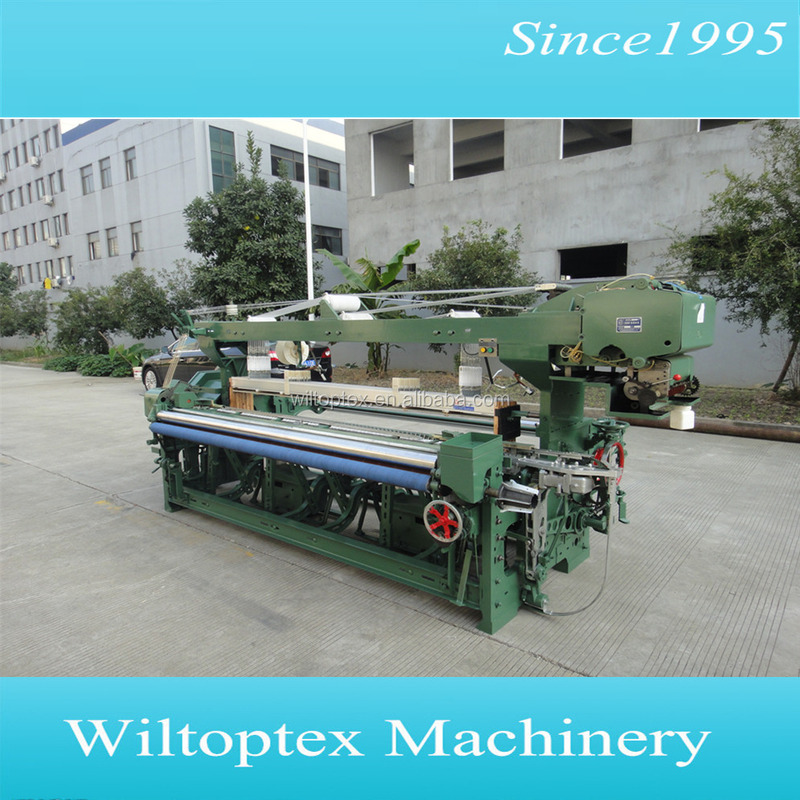

HYRL-786 Flexible Rapier Loom is used to weave crude fibre(cotton,wool,hemp),chemical fibre and blending yarn etc
FEATURE:
It adopts big housing gear ,use heavy frame and double roller for take up. It’s speed more increase than HYRL-717 rapier loom, this loom can evidently improve unit area output and fabric quality. Also its suitability is wide.
Main specifications:
Reed width(cm) | 150 180 200 230 250 280 330 340 360 390 |
Speed (R.P.M) | 230-150 |
Weft selection | 6 Colors( mechanic or electronic ) |
Yarn count | Cotton 7-60Ne,Wool 12-100Nm,Chemical fabric 100-650D |
Dia.of warp bea (mm) | Φ600, Φ800 |
Dia.of rolling-up(mm) | Φ400 |
Heddle frame | 16pcs |
Insertion rate(m/min) | 300-400 |
Electrical control | P.L.C |
Motor power(KW) | 1.5-1.8KW |
Weight(kg) | 1700-2200 |
Overall size(mm) | 5400x1827x2120mm (330cm) |
We can manufacture according to customer's requirement.
