홈 /제품 소개/와이어 메시 엮기 기계/Hotels Stone Crusher Wire Mesh Weaving Machine 6.0-12.0mm Steel Wire Mesh 65Mn

Hotels Stone Crusher Wire Mesh Weaving Machine 6.0-12.0mm Steel Wire Mesh 65Mn

1 Set
MOQ
$9,500.00(1 - 9 Sets) $9,200.00(>=10 Sets)
가격
Hotels Stone Crusher Wire Mesh Weaving Machine 6.0-12.0mm Steel Wire Mesh 65Mn
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Machine Type: wire mesh weaving machine
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: Motor, Gear
Wire Diameter (mm): 6 - 12 mm
Production Capacity: 35times/min
Model Number: APACHE-Y01
Weight (KG): 3550
Power (kW): 11
Key Selling Points: Easy to Operate
Warranty: 1 Year
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: None
Product name: hydraulic screen mesh weaving machine
Type: semi-automatic
Raw material: steel plate
Wire materials: steel wire
Voltage: 220V/380V/415V/440V/customized
Mesh Width: 2000mm
Speed: 35times/min
MOTOR POWER: 11kw
Dimension: 2550x2200x1600mm
기본 정보
Model Number: APACHE-Y01
결제 및 배송 조건
Packaging Details: 1.the main machine will be plastic package and fixed by steel wire in the container; 2.also can be packed as your need.
Supply Ability: 50 Set/Sets per Month
제품 설명
Product Description


APACHE

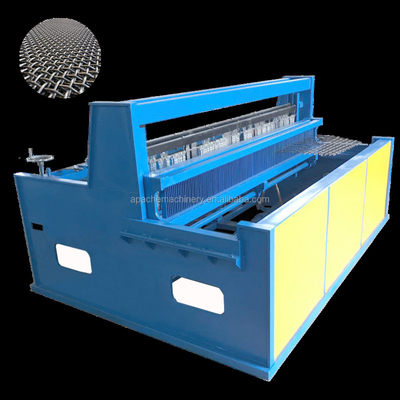

Semi-Automatic Hydraulic Screen Mesh Weaving Machine

This machine adopts hydraulic machine working principle, using the big motor as power. Weaving nets, changing ensemble, pressing net are all controlled by hydraulic cylinder. It has the advantage of performance stably; weaving the net surface smoothly, low noise, small error, etc. This machine is mainly used to weave wire diameter φ6-12mm ore screen mesh. The products mainly used for large-scale mining, coal industry screening, and filtering.


Wire Diam: φ6.0- 12.0 ( mm ) Mesh Width: 2.0-5.0 ( m )（Optional）
Power:11.0 KWx1 （set） Overall Size: 2550 x2200x1700 ( mm ) Weight: 2.5t




Video Display
Product Parameters
No
Item
Data
1
Mesh width
2m
2
Wire diameter
6-12mm
3
Mesh size
10-100mm
4
Power
11kw
5
Speed
35times/min
6
Weight
3550kg/set
7
Overall size
2550 x2200x1700 ( mm )
8
Weaving type
semi-automation
We can design the machine according to the parameters you require ,such as the wire diameter,wire raw materials and voltage.
Product Configuration
*semi-automatic hydraulic screen mesh weaving machine
*wire dia 6-12mm cutting machine
*gears
Successful Project
01
02
03
Finished Product
FAQ
Q：Where is your factory located?
A：Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport.We can pick you up from Shijiazhuang city.Our main port of shipment is Tianjin Port.

Q：How many years are your company engaged in the wire mesh machines?
A： More than 25 years. We have our own technology to develop the production r&d and testing department.Some independently developed products are in the forefront of the industry.

Q：Can your company send your engineers to my country for machine installation, worker training?
A：Yes, our engineers went to more than 50 countries before. They are very experienced.

Q：What's the guaranteed time for your machines?
A：Our guarantee time is 2 years since the machine was installed in your factory.

Q：Can you export and supply the customs clearance documents we need?
A：We have much experience with exporting. And we can supply the CE certificate, Form E, passport, SGS report, etc, your customs clearance will be no problem
